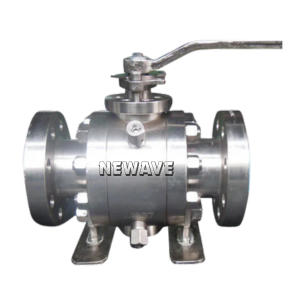

Trunnion Ball Valve
Introducing our Trunnion Ball Valve, the pinnacle of reliability, durability, and performance in fluid control solutions. Crafted with precision engineering and cutting-edge technology, these Valve are designed to exceed expectations in the most demanding industrial applications.
Trunnion Mounted Design
Our Trunnion Ball Valve feature a robust trunnion design that ensures stable and secure
ball positioning, even under high-pressure conditions. This design provides enhanced stability
and prevents ball movement, resulting in reliable performance and extended service life.
Spring-Loaded Seat Sealing
Engineered for optimal sealing performance, our Valve utilize spring-loaded seat seals that
maintain consistent contact pressure against the ball. This innovative sealing mechanism ensures
tight shut-off, even in harsh operating environments, minimizing the risk of leaks and ensuring
process integrity.
Wide Range of Materials and Sizes
Available in a variety of materials, including carbon steel, stainless steel, and exotic alloys,
our Valve can be customized to meet the unique requirements of your application. With a wide
range of sizes and pressure ratings available, we offer solutions for projects of any scale or
complexity.
| Designing Standard | API 6D / ANSLI B 16.34 [BSEN ISO 17292] |
|---|---|
| Testing Standard | API 598/ BS 6755 [BSEN ISO 12266] |
| Face To Face | ASME B.16.10 / API6D /DN |
| End Connection |
|
| Pressure Rating | ASA 150#, 300#, 600#, 800#, 1500# |
| Material Of Construction |
[Body / End Connector Piece]
|
| Material Of Construction |
[Ball & Pin]
|
| Material Of Construction |
[Stem]
|
| Material Of Construction |
[Ball Seat/Gland Seal/Stem Seal]
|
| Size | 15mm To 300mm & Above |
| Modes Of Operation |
|
